Star Leak Proof Epoxy Injection
High-performance, solvent-free epoxy resin engineered for professional structural concrete repair and permanent waterproofing solutions
Critical Concrete Challenges
Addressing structural integrity issues in commercial and industrial concrete applications
Structural Degradation
Cracks and spalling in concrete structural elements compromise load-bearing capacity, requiring immediate professional intervention to prevent catastrophic failure.
Water Infiltration
Moisture penetration through micro-cracks leads to corrosion of reinforcement steel, freeze-thaw damage, and mold growth in building interiors.
Chemical Corrosion
Industrial environments expose concrete to aggressive chemicals that accelerate deterioration, requiring specialized protective solutions.
Technical Product Overview
Professional-grade two-component epoxy injection system for structural concrete rehabilitation

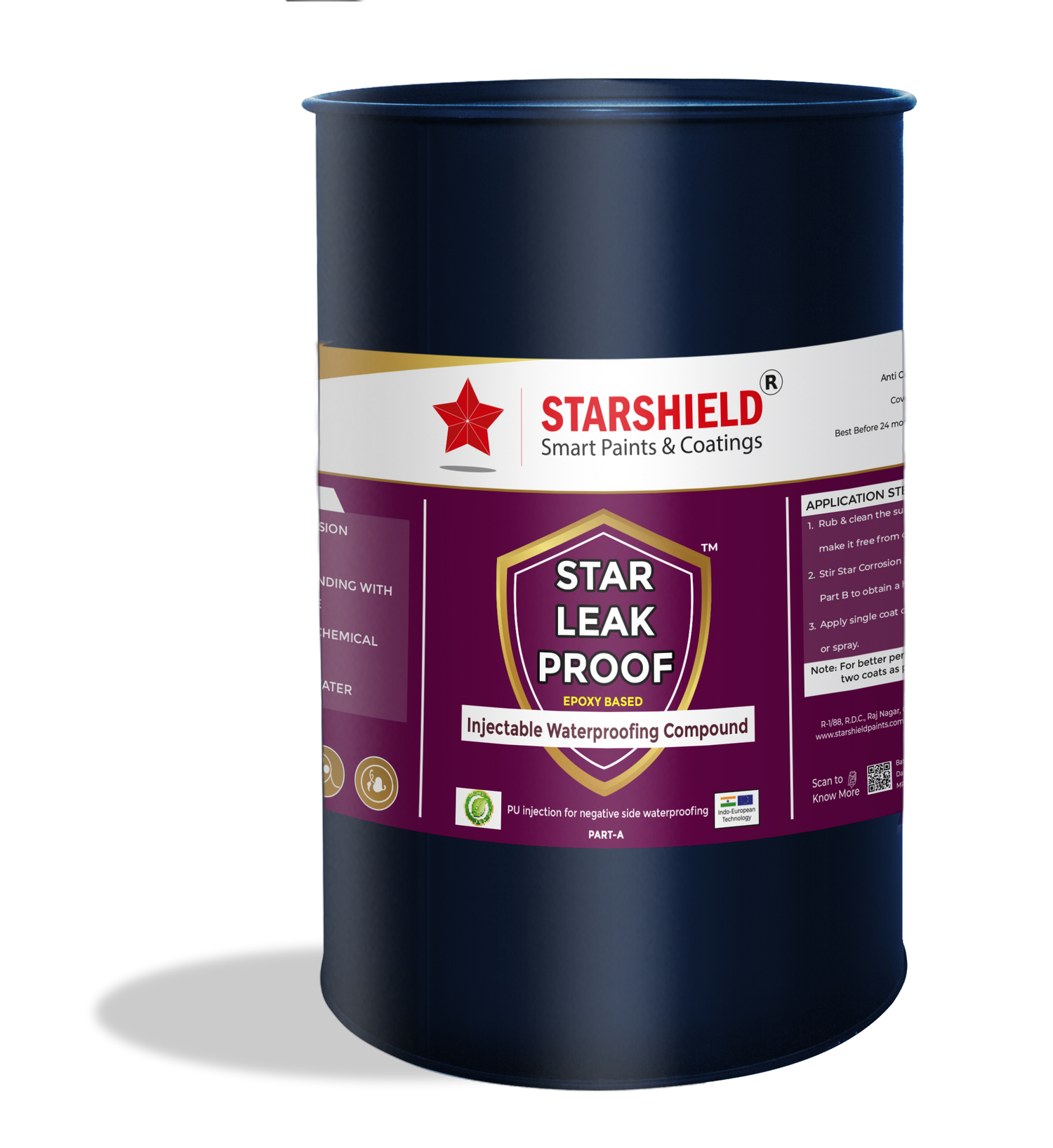

Star Leak Proof Epoxy Injection
Engineered for professional contractors and structural engineers, this high-performance epoxy injection system provides permanent solutions for concrete crack repair and waterproofing applications.
The 100% solids, solvent-free formulation penetrates cracks as narrow as 0.2mm, restoring structural integrity while providing superior chemical resistance and long-term durability exceeding 15 years.
2-Component System
Precise 4:1 mixing ratio for consistent performance
Zero VOC
Solvent-free formulation for environmental compliance
15+ Year Durability
Extended service life with 10-year warranty
High Strength
50-80 N/mm² compressive strength rating
Technical Advantages
Engineered performance characteristics for demanding professional applications
Structural Restoration
50-80 N/mm² compressive strength returns cracked concrete to original load-bearing capacity with permanent bond integrity.
Micro-Crack Penetration
Exceptional flow characteristics fill cracks as narrow as 0.2mm, ensuring complete structural integration.
Environmental Compliance
Solvent-free, low-VOC formulation meets strict environmental regulations for indoor and sensitive applications.
Superior Adhesion
Chemical bonding to concrete, brick, and stone substrates exceeds substrate strength for permanent repairs.
Non-Shrink Formula
Maintains volume during curing to ensure complete void filling without shrinkage gaps or secondary cracking.
Extended Service Life
Engineered for 15+ years of service in demanding environments with minimal maintenance requirements.
Professional Benefits & Solutions
Comprehensive solutions for structural engineers and professional contractors
Technical Benefits
- Complete Structural Restoration: Returns cracked concrete to original design specifications and load capacity.
- Permanent Waterproofing: Creates impermeable barrier against moisture, chlorides, and chemical ingress.
- Corrosion Protection: Encapsulates reinforcement steel to prevent rust and structural deterioration.
- Chemical Resistance: Withstands exposure to acids, alkalis, salts, and industrial chemicals.
- Cost Efficiency: Eliminates need for extensive demolition and reconstruction, reducing project timelines.
- Code Compliance: Meets international standards including BS 6319, ASTM, and ZTV-ING requirements.
Professional Applications
Star Leak Proof Epoxy Injection is specified for:
- Structural crack repair in commercial buildings
- Bridge and infrastructure rehabilitation
- Industrial floor maintenance
- Water containment structures
- Heritage building preservation
- Tunnel and underground waterproofing
The system provides engineered solutions for structural engineers, contractors, and facility managers requiring permanent concrete repair solutions.
Ready to Order?
Get professional-grade Star Leak Proof Epoxy Injection delivered directly to your job site. Our epoxy injection system is available in various package sizes to meet your project requirements.
Professional Application Process
Systematic methodology for optimal results in structural repair applications
Surface Preparation
Mechanical cleaning and routing of cracks wider than 5mm to ensure optimal epoxy penetration and adhesion.
Port Installation
Strategic placement of injection ports at 150-300mm intervals along crack path for controlled epoxy distribution.
Material Preparation
Precise 4:1 ratio mixing with low-speed equipment to maintain viscosity and extend 60-80 minute pot life.
Pressure Injection
Controlled injection from lowest point upward until epoxy emerges from adjacent port, ensuring complete filling.
Curing & Finishing
7-day cure period at 23°C followed by port removal and surface finishing for professional appearance.
Technical Application Guidelines
Professional specifications for optimal performance and compliance
Application Specifications
Surface Preparation: Substrate must be clean, sound, and free of contaminants. Mechanical preparation required for optimal adhesion.
Temperature Range: Apply between 8°C – 30°C substrate temperature. Material temperature should be 15°C – 25°C.
Mixing Procedure: Precisely measure components 4:1 by weight. Mix at low speed for 3 minutes until homogeneous.
Application Method: Use professional injection pumps for controlled pressure application. Inject from bottom port upward.
Curing Conditions: 7-day cure at 23°C. Protect from moisture and temperature extremes during curing period.
Coverage Rates: 20 sqft/litre for new substrates, 30 sqft/litre for existing surfaces (varies with crack width and porosity).
Safety & Compliance
Personal Protection: Wear appropriate PPE including gloves, safety glasses, and protective clothing during application.
Ventilation: Ensure adequate ventilation in enclosed spaces during application and initial curing period.
Fire Safety: Material is flammable before curing. Keep away from ignition sources and observe fire safety protocols.
Equipment Cleaning: Clean equipment immediately after use with xylene or approved epoxy solvent.
Environmental Conditions: Avoid application during rain or high humidity (>85% RH) to prevent moisture contamination.
Storage: Store in original containers at 5°C – 25°C. Keep away from direct sunlight and moisture.
Professional Application Areas
Engineered solutions for commercial, industrial, and infrastructure applications
Commercial Applications
- High-rise building structural elements
- Parking structures and garages
- Shopping center foundations
- Office building slabs and columns
- Hospital and healthcare facilities
- Educational institution structures
Infrastructure Projects
- Bridge decks and substructures
- Tunnel linings and waterproofing
- Highway and roadway repairs
- Airport runway maintenance
- Rail and transit structures
- Marine and waterfront structures
Industrial Applications
- Manufacturing facility floors
- Warehouse and distribution centers
- Chemical processing plants
- Power generation facilities
- Water and wastewater treatment
- Food processing facilities
Compatible Substrates
Performance Verification
Independent testing validates engineering specifications and performance claims
Certified Performance
Star Leak Proof Epoxy Injection meets or exceeds international standards for structural repair materials, providing engineers with certified performance data for specification and validation.
Testing Standards Compliance
- BS 6319 Parts 2, 3, 7 - British Standards for epoxy resins
- ASTM C307, C580, C882 - Adhesion and strength testing
- ASTM D732, D2196 - Shear strength and viscosity
- ASTM D570, C531 - Water absorption and abrasion resistance
- ASTM D543 - Chemical resistance verification
- ZTV-ING - Crack bridging capacity for infrastructure
N/mm² Compressive Strength
N/mm² Tensile Strength
Minimum Crack Penetration
Years Service Life
Professional Endorsements
Verified feedback from engineering professionals and project managers
Advanced Technical Features
Additional engineering benefits for demanding professional applications
Thermal Compatibility
Coefficient of thermal expansion matches concrete substrate, eliminating stress at bond interface during temperature fluctuations.
Chemical Inertness
Fully cured epoxy resists industrial chemicals, acids, alkalis, and salt solutions for long-term protection in aggressive environments.
Moisture Tolerance
Can be applied to damp substrates (not free water) with proper surface preparation, expanding application windows in humid climates.
Fatigue Resistance
Maintains structural integrity under dynamic loading and vibration, ideal for bridge decks and industrial flooring applications.
Abrasion Resistance
Cured surface withstands heavy traffic and abrasion in industrial settings without degradation of waterproofing properties.
Load Transfer Capacity
Restores full load transfer across repaired cracks, maintaining structural continuity in load-bearing elements.
